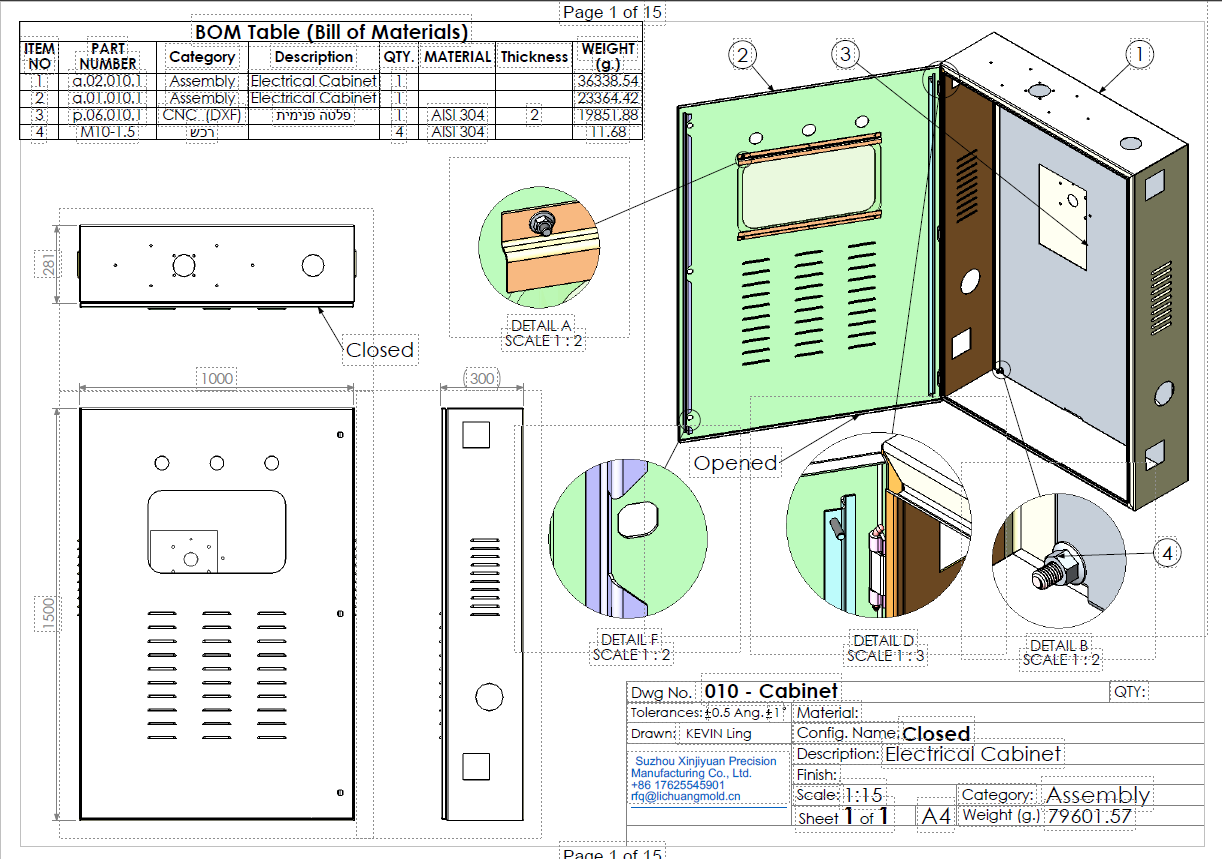

Drawing Review
Material, thickness, tolerances, bends, critical holes and finishing requirements are clarified before production.
QUALITY CONTROL
Turn drawing requirements into measurable quality checks
From drawing review and first-article approval to in-process and final checks, inspection follows the features that matter to fit, function and assembly.
INSPECTION FLOW
Four control points from RFQ to shipment.
First-Article Approval
Samples or first pieces are checked against the approved drawing before repeat production.
In-Process Inspection
Key dimensions, forming direction, hole locations and assembly features are monitored during production.
Pre-Shipment Inspection
Quantity, appearance, critical dimensions, threads and packaging are checked before shipment.
CHECK POINTS
Inspection plans based on part risk and customer requirements.

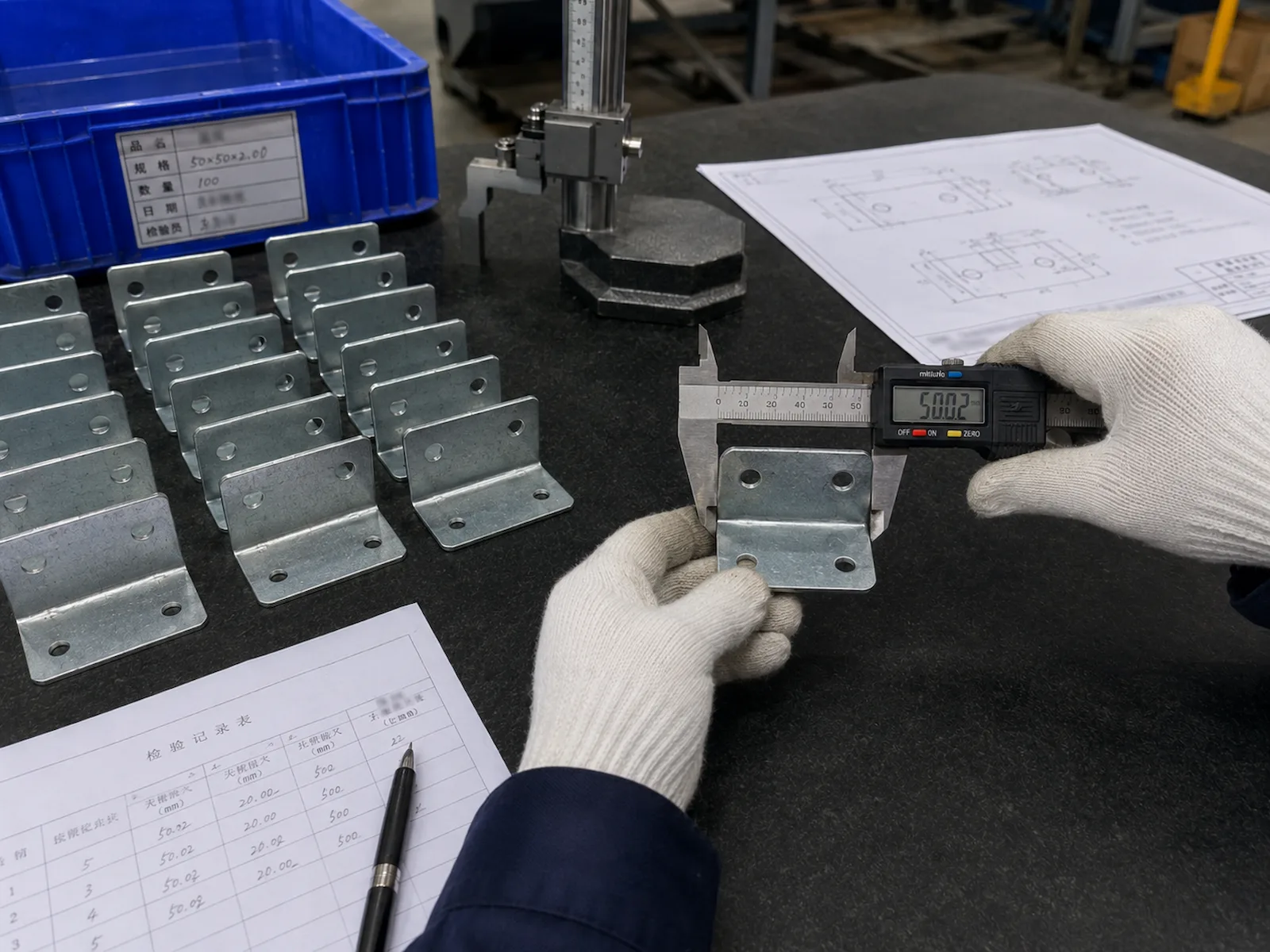

Typical checks cover material and thickness, hole locations, bend direction, critical dimensions, threads, inserted fasteners, finish, quantity and packaging. Inspection frequency and documentation are agreed during the RFQ or sample stage.
- Prioritize dimensions that affect fit and function
- Use approved drawings and samples as production references
- Arrange third-party testing when the project requires it
Material
Verify material, thickness and surface condition.
Dimensions
Check key holes, bends and assembly dimensions.
Features
Inspect threads, inserted fasteners and interfaces.
Shipment
Check quantity, appearance, labels and packaging.
COMPLIANCE CLARITY
Clear, evidence-based compliance support.
We can support protective-structure reviews and coordinate third-party testing when required. IP or UL claims are made only when supported by valid project documentation.
START YOUR PROJECT
Send your drawings for a practical manufacturing review.
Include material, thickness, quantity, finish and target lead time. A dimensioned drawing helps us assess feasibility and quote more accurately.
